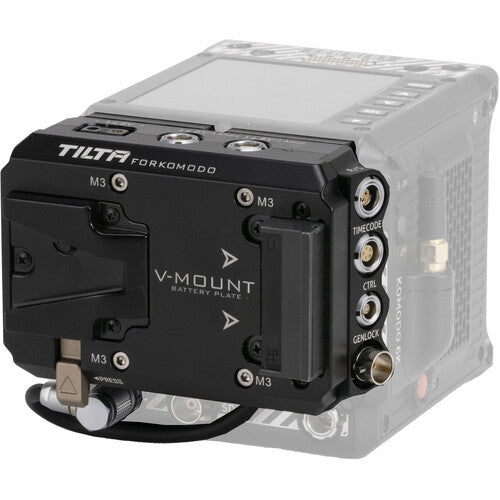

Tilta V-Mount Advanced Power Distribution Module for RED Komodo Type II (Black)

OVERVIEW

The Tilta V-Mount Advanced Power Distribution Module for RED Komodo Type II (Black) is the ultimate accessory to power your RED Komodo and greatly expand functionality via additional control ports. This Module adapts the RED Komodo’s dual Canon BP battery slots to either a Gold or V-Mount Battery Plate in one of the following configurations: Horizontal Gold Mount, Horizontal V-Mount, or Vertical V-Mount.

When using V-Mount batteries, this module will fully communicate with your camera body, allowing you to see your remaining battery life as a percentage on the RED Komodo’s user interface.

This Module features an integrated Komodo EXT Cable that connects to the camera body to provide full communication for expanded functions like Run Stop and Timecode via additional ports. One of these ports being a 3 Pin Fischer R/S port allows you to trigger Run Stop and power a Nucleus M with a single cable via the optional 3 Pin Fischer Run Stop Cable.

The Module features the following ports:

• 14.8V P-Tap Port
• 14.8V 2-Pin LEMO Port
• 3 Pin Fischer R/S Port
• Timecode Port
• Red CTRL Port
• Genlock Port
• 5V USB Port
