The Atomos Shogun AV-19 19" Rackmount 4K HDR Monitor-Recorder-Switcher expands your production monitoring capabilities with a powerful all-in-one solution for studio, live, and broadcast environments. As part of the Shogun lineup, this 19" rackmount unit combines monitoring, recording, and switching into a single streamlined system.
The large display features a bright capacitive touchscreen for intuitive control and accurate viewing of 4K HDR content. With support for both HDMI and 12G-SDI input and output, it integrates easily into a wide range of professional workflows. NDI|HX3 support via Gigabit Ethernet enables flexible IP-based production, making it ideal for cinema capture, live events, and broadcast applications where reliability and versatility are essential.
Bright UHD 4K Screen
- Large 3840 x 2160 resolution display
- 1200 cd/m² brightness
- Capacitive touchscreen
- Quad- or full-screen display setup
- Play back your recently captured shots on the same pristine screen for reviewing
Multicamera Switching
- One HDMI, two 12G-SDI, and two 3G-SDI inputs transform the Shogun into a quad-view live switcher and recorder on your multicamera shoots
- Monitor live, multicamera feed
- Record a fifth program channel of your switched feed and display the resulting mixed output live
- Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras
NDI Support
The Shogun includes NDI support via its Gigabit Ethernet LAN port, providing easy integration with PTZ camera control and existing NDI networks. It supports input and output of your program via the high-quality, low-latency NDI|HX3 protocol.
HDR I/O and Color Management
Deliver content via live HDMI or SDI out, in real time, from any HDR camera to a compatible HDR TV or monitor. You can monitor every pixel of SDR or HDR as it's captured and view it in 10-bit HDR. It's a perfect companion for a high-end ARRI, RED, or Sony VENICE cinema camera.
Shogun AV-19 receives Log signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 while recording in high-quality ProRes, DNxHR, or ProRes RAW.
Recording and Custom LUTs
Use with your DSLR or mirrorless camera via HDMI to record ProRes, ProRes Raw, and AVID DNx codecs for easy editing and archival quality. You can record the main program up to 6K30 via 12G-SDI and up to DCI 4K60 via HDMI and up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real time with a simple touch of the screen.
Record to a CFexpress slot on the front of the monitor or to external media via USB-C output. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Shogun's built-in monitoring tools for precise exposure control.
User-Definable Function Buttons
Six function buttons on the front of the monitor provide quick access to frequently used features.
You can instantly bring up monitoring tools, playback modes, LUTs, anamorphic desqueeze, and more with just the touch of a button.
Monitoring Tools
The 7" Shogun Classic features numerous built-in monitoring tools, including:
- Custom 3D LUTs
- False color
- Focus peaking
- HDR exposure
- Pixel magnification (1:1, 2:1)
- RGB parade
- Vectorscope
- Frame guides
- Zebra
- Waveform
- Safe areas
- Markers
- Vertical flip
- Atomos Calibrator with Display Pro HL and Display Plus HL
- Downscaling to HD and crop
- Interlaced and PSF to progressive
- Anamorphic de-squeeze

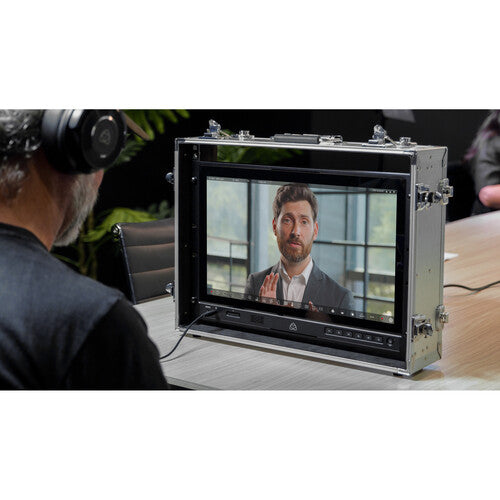

Powerful Live and on Set
On set or during live broadcasts, the Shogun AV-19 provides a bright, color-accurate reference display for directors, DITs, and other crew with quick and easy playback of recorded takes.
With a full suite of Atomos monitoring tools, switching tools, and graphic capabilities, the Shogun AV makes it easy to evaluate exposure, focus, color, and framing with confidence.

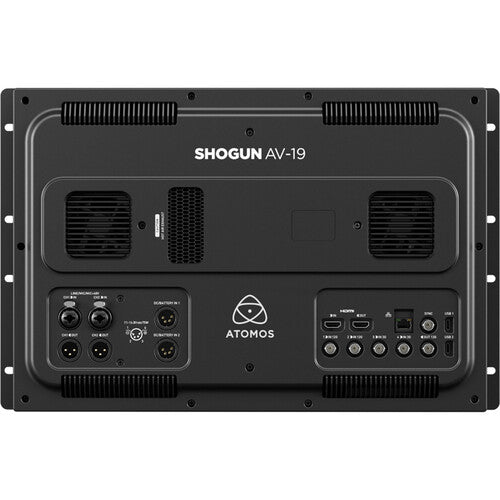

Additional Features
- LTC input via BNC
- 3-pin XLR audio input for 2-channel input and output
- 7 RU rackmount size
- Dual 4-pin XLR power inputs for redundant DC and/or battery options
- Remote start/stop trigger via 2.5mm LANC jack on front
- 3.5mm headphone output
- Tally light on the front
