Enhance your production with 4K30 wireless video transmission using the flexible TX 4K/HD Wireless Video Transmitter & Receiver Set from Atomos. This kit includes both a transmitter and receiver. The transmitter offers HDMI and SDI inputs, plus an HDMI loop-through output, while the receiver is equipped with dual HDMI outputs and a single SDI output. Capable of transmitting to up to four Atomos receivers at distances up to 985' line of sight, the system also supports direct streaming to iOS and Android devices for convenient mobile monitoring.
The units transmit using the free-to-use 5 GHz frequency band for interference-free wireless transmission. They support up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI ports. In addition to the USB-C port, the units can be powered using a DC power adapter or an L-series type battery using the integrated battery plates.
Atomos TX 4K/HD Wireless Video Transmitter
Integrate 4K30 wireless video transmission to your setup with the versatile TX 4K/HD Wireless Video Transmitter from Atomos. Featuring both HDMI and SDI inputs along with an HDMI loop-through output, the transmitter supports line-of-sight transmission up to 985' to as many as four compatible Atomos receivers. It also offers direct wireless streaming to iOS and Android devices, enabling flexible mobile monitoring on set.
The unit transmits using the free-to-use 5 GHz frequency band for interference-free wireless transmission. It supports up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI input. In addition to the USB-C port, the unit can be powered using a DC power adapter or an L-series type battery using the integrated battery plate.
Features
- Compact and portable
- Transmits up to 4K30 via HDMI and 1080p60 via SDI
- 5 GHz Wi-Fi transmission with strong anti-interference
- Range of up to 985'
- Powered by L-series battery slot, USB-C input, or 9 to 16 VDC input
- Transmit to iOS or Android smartphones
- Supports up to four receivers per transmitter

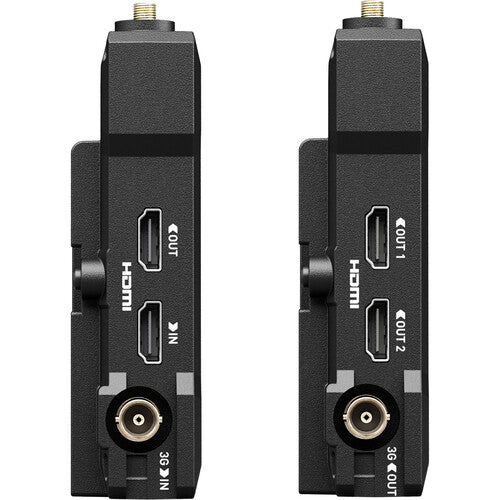

- Transmitter features two HDMI inputs, one SDI input, and one HDMI loop output
Atomos RX 4K/HD Wireless Video Receiver
Integrate 4K30 wireless video reception into your production with the flexible RX 4K/HD Wireless Video Receiver from Atomos. Equipped with dual HDMI outputs and a single SDI output, the receiver can capture a 4K30 signal from an Atomos transmitter at distances up to 985' line of sight. Up to four receivers can simultaneously receive video from the same transmitter, making it ideal for multi-monitor setups.
The unit receives video using the free-to-use 5 GHz frequency band for interference-free wireless transmission. It supports up to UHD 4K30 video via the HDMI ports and up to 1080p60 video via the SDI output. In addition to the USB-C port, the unit can be powered using a DC power adapter or an L-series type battery using the integrated battery plate.
Features
- Compact and portable
- Receives and outputs up to 4K30 via HDMI and 1080p60 to SDI
- 5 GHz Wi-Fi transmission with strong anti-interference
- Range of up to 985'
- Powered by L-series battery slot, USB-C input, or 9 to 16 VDC input
- Transmission supported by up to four receivers per transmitter
- The receiver features two HDMI outputs and one SDI output
