Set your exposure properly and focus accurately when capturing video with the help of the PORTKEYS BM5 III WR 5.5" HDMI Touchscreen Monitor. This ultrabright onboard monitor features a wide color gamut, a durable aluminum build, and both HDMI and 3G/SDI video inputs and SDI output. The included wireless control module offers Wi-Fi control for the RED KOMODO and Bluetooth control for BMPCC 6K/6K Pro and 4K cameras. Wired control is available for select Canon, Blackmagic Design, Panasonic, Sony, and ZCAM E2 cameras. The BM5WR with Camera Control maintains the same reliable BM5 clarity, vivid color details, and dynamic touch screen camera control, and it offers touch focus for the KOMODO, the Panasonic BGH1, and the ZCAM E2.
Wired Camera Control
Wired control of select Sony, Canon, Panasonic, Blackmagic Design, and ZCAM E2 cameras.
Wired Motor Control
The BM5 III WR can display the position of the Tilta Nucleus N/M and display the wireless follow focus scale.
Touchscreen Control Focus
When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real time without any other tools when using the RED KOMODO, Panasonic BGH1, or the ZCAM E2.
Robust Design
The rugged aluminum alloy shell design is durable and lightweight, weighing only 13.3 oz, yet able to withstand heavy daily operations.

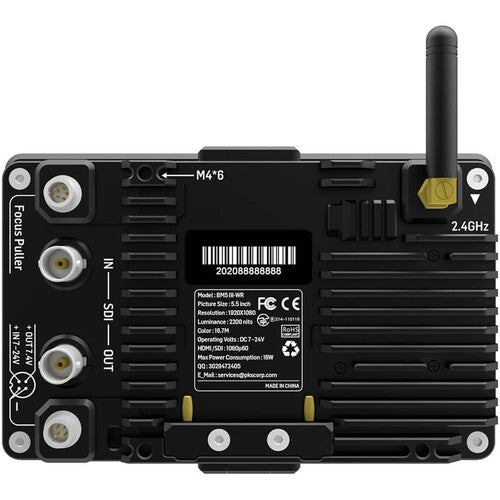

HDMI In/SDI In/Loop Out
HDMI input and SDI input and loop output ports with the ability to output a superimposed image with 3DLUT and peaking via the SDI output.
2200 cd/m² Superbright Monitor
The BM5 III WR offers a 2200 cd/m² ultrabright 5.5" display with excellent color, resolution, contrast, and precise image control.
Color Calibration
Each BM5 III WR has passed strict hardware color calibration before shipping to ensure the widest color gamut and the most accurate colors.
10-Bit (8+2 FRC) Color
A 10-bit color depth for more accurate, richer color reproduction.
New Focus Peaking
The optimized new peaking algorithm can accurately capture subtle facial focus.
ARRI False Color Mode
Expose your image using ARRI false color mode and user-defined modes with the ability to freely set the IRE in user-defined mode.
Precision Waveform
Equipped with five kinds of precise oscilloscope functions, including vectorscope, RGB waveform, brightness waveform, RGB histogram, and brightness histogram, the monitor allows for quick switching among these in different display modes and in real time, offering you the most detailed and accurate image information.
Image Capture and Image Overlay
Image Capture takes a snapshot of the video feed being sent through SDI or HDMI (combined with a LUT if desired) and saves it to memory; great for shot matching (continuity) or a quick overview of the day's shots.
