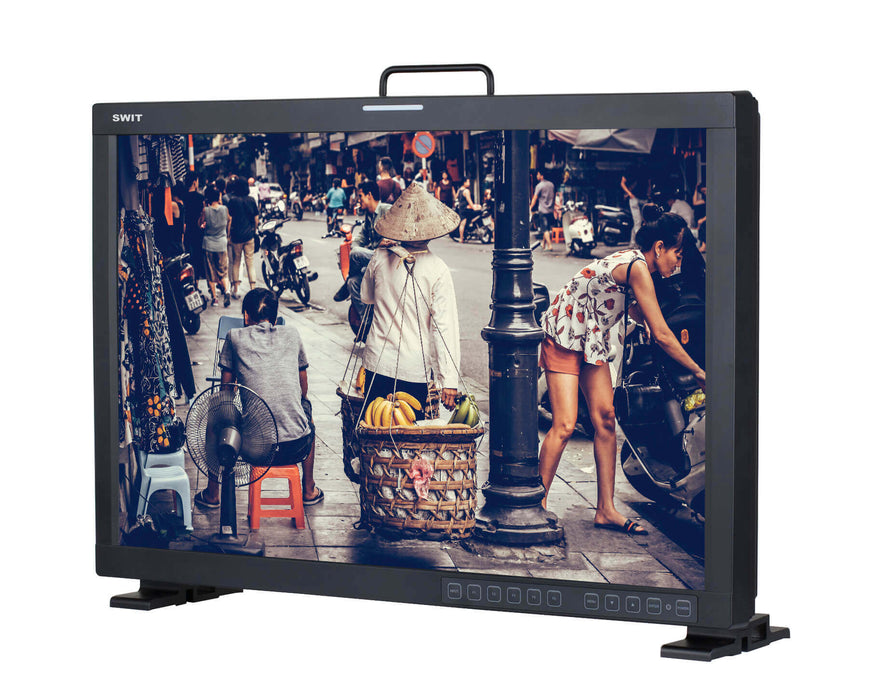

SWIT 24" 100 DCI-P3 Gamut Post Production Monitor

OVERVIEW

• 24” 1920×1200 non-glaring LCD
• 10-bit LCD, 12-bit internal process
• 100% DCI-P3 Color Gamut
• 3G/HD/SD-SDI and HDMI input
• Multi-camera logs to Rec.709
• DIT user 3DLUT cube upload by USB
• Closed Caption
• Webserver IP remote control
• Waveform / Vector scope / Histogram
• 16-ch embedded audio meters
• Peaking focus assist with precision adjustment
• Exposure assist / Zebra / Blue only
• Anamorphic de-squeeze / Multiple markers
• USB firmware upgrade
• V-mount or 4-pin XLR or AC input

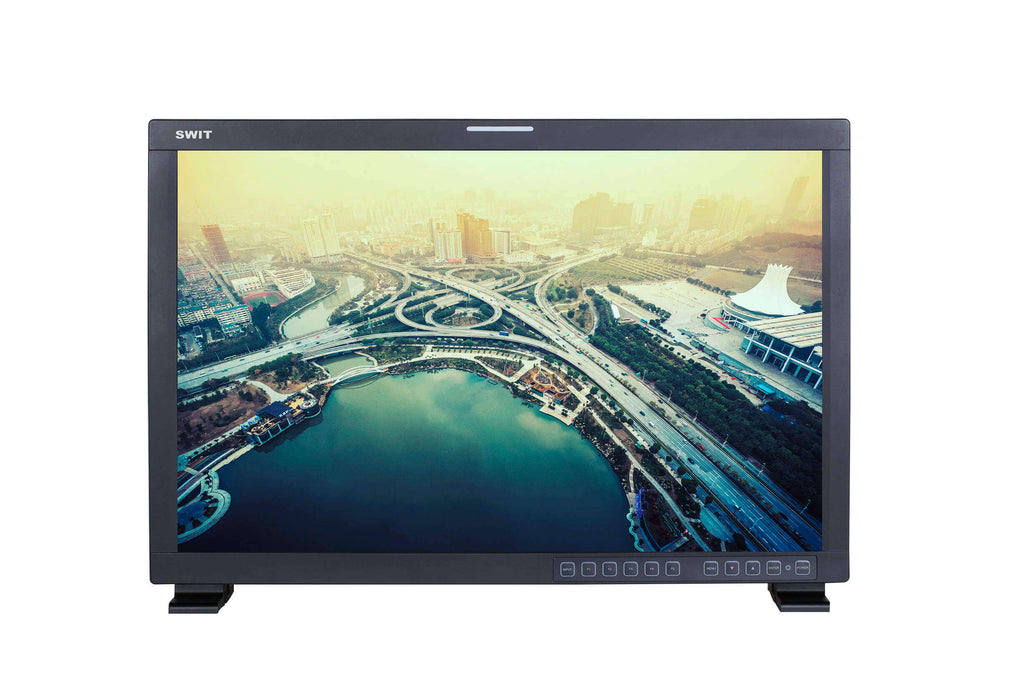

The FM-24DCI monitor adopts a 24-inch 10-bit LCD panel with LED backlight, 100% DCI-P3 wide color gamut for post-production. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 178° / Vertical: 178°

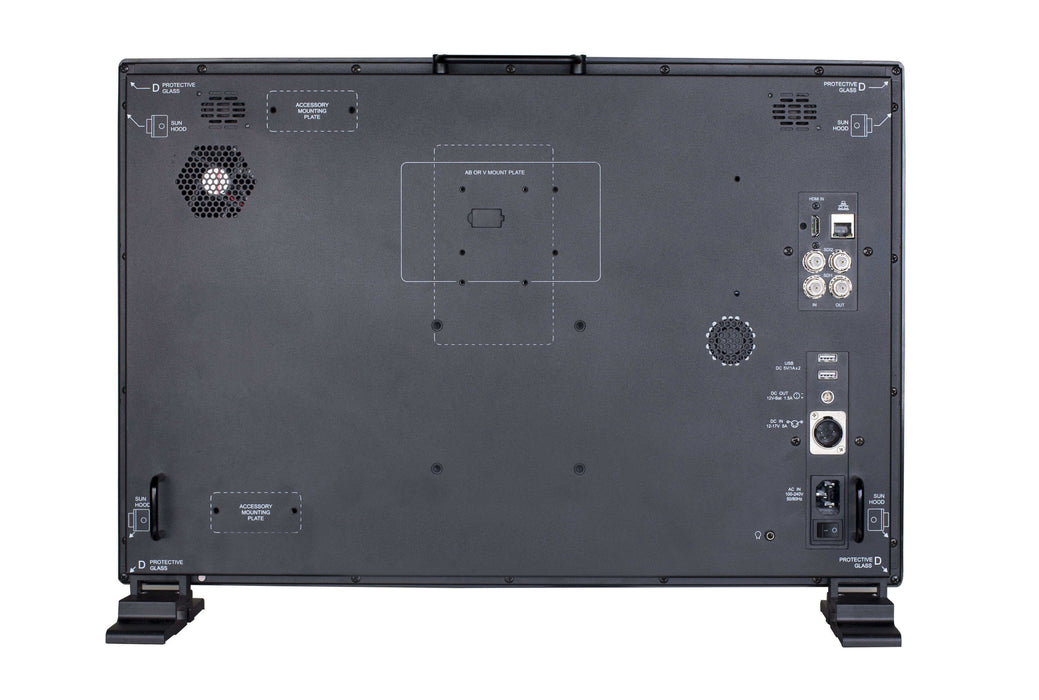

Input/Output Interfaces (3G-SDI, HDMI)

FM-24DCI monitor supportsÔºö

• 3G/HD/SD-SDI input × 2
• 3G/HD/SD-SDI loop output × 2
• HDMI 1.3 input × 1
• Ethernet RJ45 × 1
• USB-A LUT/Firmware input × 2

SDI 1/2 PIP and PBP

FM-24DCI supports 2x SDI Pic-in-Pic or Pic-by-Pic display mode. Under Pic-in-Pic mode, the sub input window can be set to bottom-left or bottom-right, and size adjustable.

Built-in De-log 3DLUTs

DIT user 3DLUT cube upload

FM-24DCI provides multiple De-log 3DLUTs to convert log mode to REC709 for all major cameras, includes.

• ARRI LOG R709
• RED RLF RG3
• SONY SL2 LC709A
• SONY SL3C L709A
• Pana V-Log V709
• Canon CinCL1 WDR
• Canon CinCL2 WDR
• BMD CC FILM V
• BMD PC FILM V2

And supports 4x user 3DLUT cubes or calibrated 3DLUT cube uploaded by USB stick.

Closed Caption

FM-24DCI supports closed caption of 608(708), 608(ANC) and 608(VBI) standards.

2 AUTO modes are provided for easy setup:

• Auto1: Set to 608(VBI) for SD-SDI and 608(708) for HD-SDI;
• Auto2: Set to 608(ANC) for SD-SDI and 608(708) for HD-SDI

Webserver IP Remote Control

FM-24DCI supports webserver remote control by Ethernet LAN connection.

Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

Waveform / Vector scope

FM-24DCI supports Waveform (LUMA) and Vector scope (75% or 100%) display. The patterns can be switched on/off individually, display position (Left/Right) selectable.
