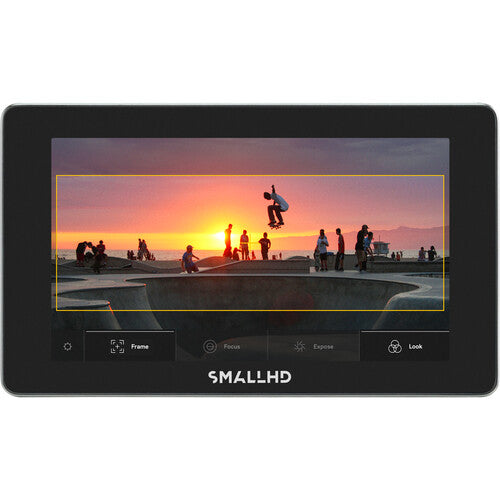

Content creators, photographers, and budding filmmakers in search of a compact and lightweight on-camera monitor that works perfectly, even when shooting in broad daylight, will be delighted by the SmallHD Action 5 Touchscreen 5" On-Camera Monitor. The streamlined 5" touchscreen display boasts 2000 cd/m² brightness and a screen resolution of 1920 x 1080 with a 1000:1 contrast ratio.

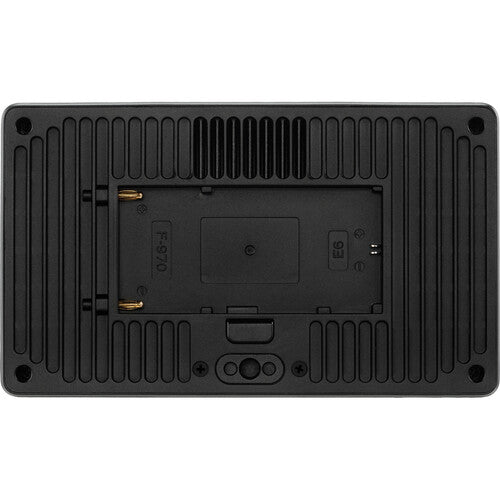

Packed with very useful visual aid features, such as focus assist, false color, and frame tool, the Action 5 supports the Rec.709 color gamut and has an integrated, dual-purpose battery slot that allows you to use either Sony-type NP-F or Canon LP-E6 batteries. Three 1/4"-20 mounting threads provide ample options for mounting the monitor in your preferred position. Powered by ActionOS, an intuitive software that is a simplified version of SmallHD's own professional-level PageOS, the Action 5, weighing just under 0.5 lb, is designed for the on-the-go shooter, and its light weight and portability ensure to never weigh you or your camera down.
Accentuate in-focus areas of the image for at-a-glance adjustments
Use false color and an exposure scale to ensure your shot is perfectly lit
Contrast adjustment for Log-based footage, with three SmallHD-designed LUT presets and the ability to load a custom LUT, if desired
Quickly check the framing of your image
2000 cd/m² of brightness allows for easy outdoor visibility
| Display Size | 5.5" / 14.0 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 2000 cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 440 ppi |
| Image Controls | False Color, Focus Assist, Screen Markers |
| Video | 1 x HDMI Type A (HDMI 2.0) Input 1 x HDMI Type A (HDMI 2.0) Output |
| Embedded Audio | HDMI |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (24 VDC) Input 1 x Barrel (8 VDC) Output |
| Other I/O | 1 x USB 2.0 (USB Type-A) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x LP-E6, L-Series |
| Power Consumption | 12 W |
| Mounting | 3 x 1/4"-20 Female |
| Weight | 8.5 oz / 241 g |
