ARRI Blue/Silver SkyPanel S60-C LED Softlight with Edison Connector
ARRI

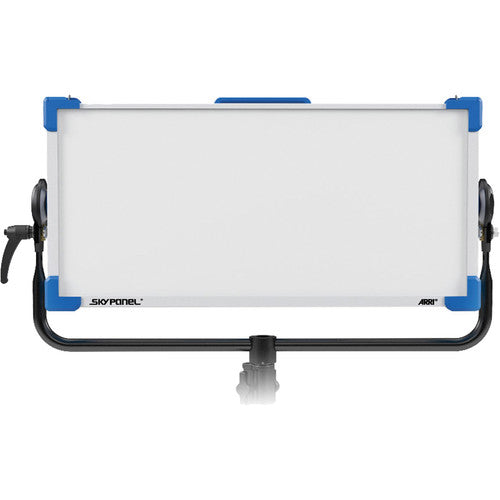

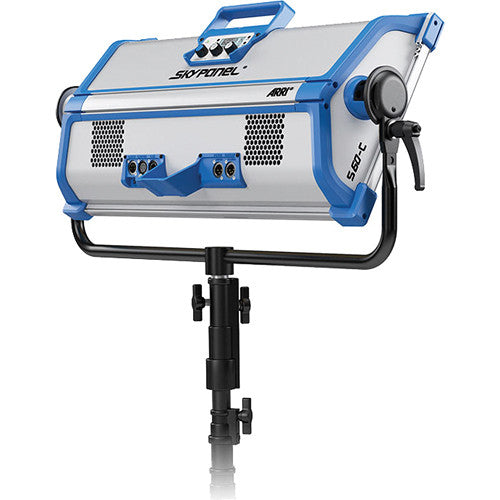

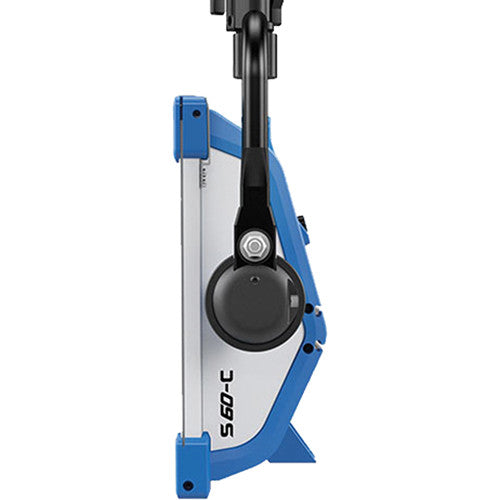

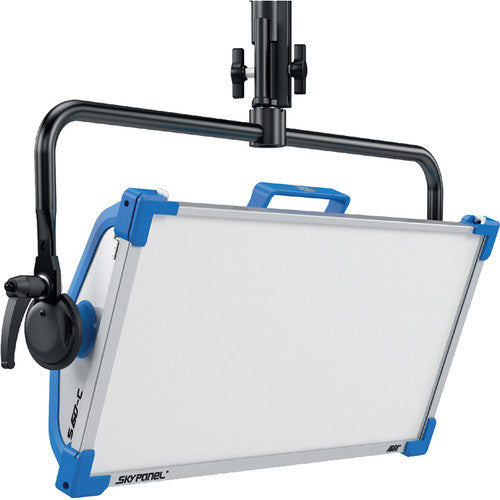

ARRI Blue/Silver SkyPanel S60-C LED Softlight with Edison Connector

SKU | L0.0007063

No Longer Available

This product is no longer available and is discontinued

Expected Delivery -

Order Now:

Financing:

$615.69 / month

Genuine Expert Advice |

Send us an

about this product or anything else

HIGHLIGHTS

  • Manual Yoke
  • Panel Surface Area: 25.4 x 11.8"
  • 115° Beam Spread, Rail Mount Adapter
  • Color Temperature from 2,800-10,000K
  • Full Gamut Color Mixing
  • Hue and Saturation Control
  • Full Minus to Full Plusgreen
  • 0-100% Dimming, DMX Control
  • CRI: 95, TLCI: 90
  • Multi-Voltage AC, Optional Battery Power

Specs

Light Fixture
Optical System Soft LED diffusion panel, 50,000 hr lamp life
Beam Angle 115°
Color Adjustment White light: 2,800 - 10,000K continuously variable Correlated Color Temperature
Colored light: Full RBG+W Color Gamut with hue and saturation control
Color Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Estimated color shift over time: < 200 hr
Dimming 0-100% Continuous
Control On-Board Controller, 5-Pin DMX In and Through
EtherCon LAN Network connectivity, USB-A for firmware updates
RDM (Remote Management Device): DMX setup, hour counter and standard RDM commands
Mount Steel yoke, Junior pin 1-1/8" (28 mm)
Certification CE, FCC; GS, cNRTL, CB (pending)
IP 20
Operating Temperature -4 to +113ºF (-20 to +45º)C
Dimensions Illuminated front face only: 25.4 x 11.8" (64.5 x 30 cm)
Outside dim. excluding Junior pin: 27 x 17 x 5.23 (688 x 433 x 133 mm)
Weight 26.5 lb (12 kg)
Power Supply
Voltage Range Input: 90-250 VAC, 50/60 Hz
Output: 48 VDC
Connections Input: powerCON TRUE1 to Edison
Output: 3-Pin XLR, 10 A (pin 1: negative / pin 2: positive)
powerCON TRUE1 (mains power through)
Mounting Super clamp attachment or SkyPanel PSU rail mount
Control Onboard On/Off switch
Weight 11 lb (5.0 kg)

Packaging

Package Weight 47.0 lb
Box Dimensions (LxWxH) 23.3 x 18.2 x 11.9"
