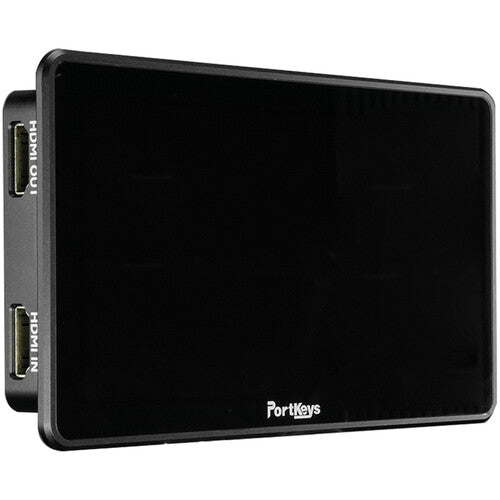

The PORTKEYS LH5P III 5.7" Touchscreen HDMI Monitor brings professional monitoring tools and convenient camera control to compact DSLR and mirrorless camera rigs. Designed for filmmakers, camera operators, and content creators, its portable on-camera form factor provides a detailed monitoring solution without adding unnecessary bulk to a mobile production setup.
The 5.7" touchscreen display delivers an impressive 2200 cd/m² brightness, making it easier to monitor footage when working outdoors or in bright production environments. A 1400:1 contrast ratio and 10-bit color provide detailed image reproduction for evaluating exposure, focus, framing, and overall image quality while shooting.

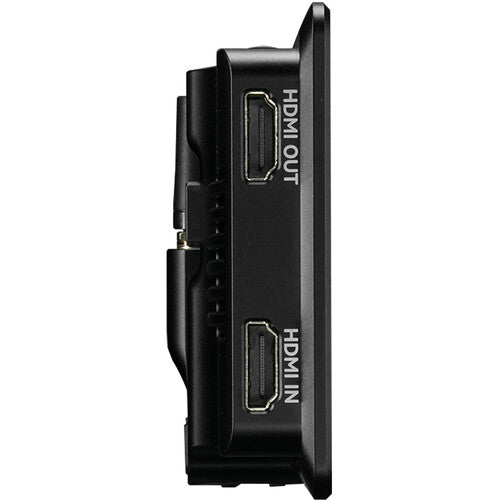

For high-resolution video workflows, the LH5P III supports HDMI input and output up to DCI 4K60. This allows the monitor to integrate into modern DSLR and mirrorless camera setups while passing high-resolution video through to additional compatible equipment when needed.
Beyond monitoring, the LH5P III can also provide camera control through wired or wireless connectivity, allowing compatible camera functions to be accessed directly as part of the monitoring workflow. This combination of monitoring and control can help streamline operation when the camera is incorporated into a more complex handheld, gimbal, or production rig.
With its 2200-nit touchscreen, 10-bit color, 1400:1 contrast ratio, DCI 4K60 HDMI I/O, and wired or wireless camera control, the PORTKEYS LH5P III delivers a versatile monitoring solution for filmmakers who need a bright, compact display for professional DSLR and mirrorless production.

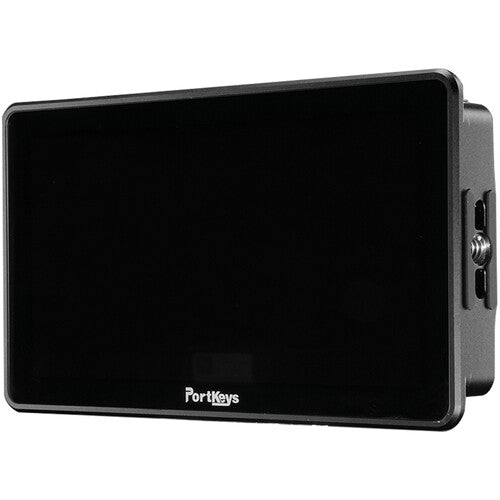

High-Bright 5.7" Touchscreen Monitor
The 5.7" LCD on-camera monitor features 2200 cd/m², 10-bit processing, and a 1400:1 contrast ratio for daylight visibility. It supports HDMI input and loop output up to DCI 4K60.
The display has been enhanced from previous models with factory Calman calibration for true color, 94.9% P3-D65 coverage, and 97.7% Rec. 709 coverage for vivid color and detail.
Camera Control Functions
You can control numerous camera functions via a wired cable option or wirelessly right from the monitor screen, including rec, zoom, ISO, aperture, autofocus, touch focus, modes, color temperature, and more.
Touch Focus and Subject Tracking
The monitor allows you to tap the touchscreen to lock focus and activate intelligent subject tracking to maintain sharp focus on both fast-moving action and static subjects during solo productions.

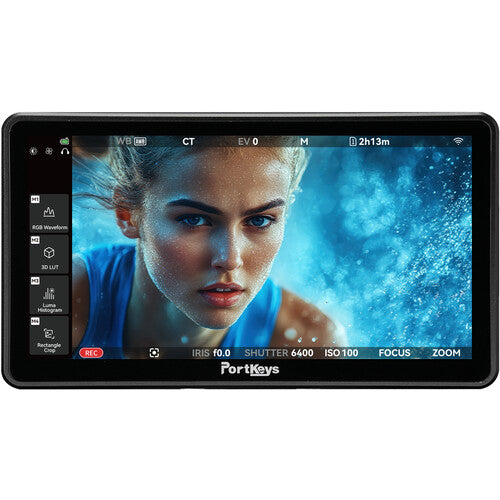

Built-In Image Assist Tools
The monitor provides numerous built-in image assist tools, including false color, zebra, RGB/luma waveform, histogram, HDR (HLG), 3D LUTs, crosshair, check field, image overlay, grids, audio meters, rectangle crop, and image capture.
Log Support
The monitor automatically identifies Sony Log signals, while signals from Canon, RED, ARRI, Nikon, Panasonic, FUJIFILM, and Blackmagic can be manually selected. The display can divide images into 14-19 customizable exposure zones with distinct false color for precise exposure judgment when looking at raw Log footage.
Custom 3D LUTs
The monitor lets you import up to 20 custom 3D LUT files via a USB-A flash drive. LUTs offer real-time previews and precise 17 x 17 x 17 size.

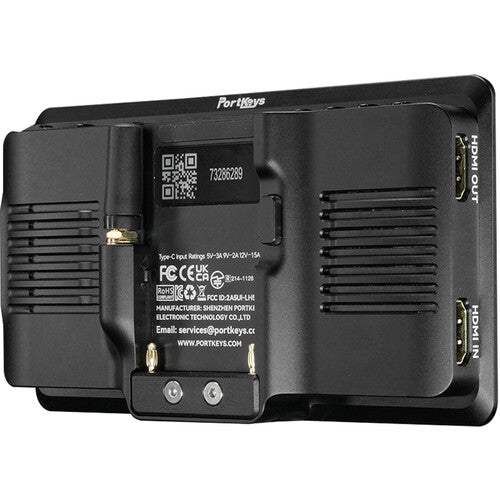

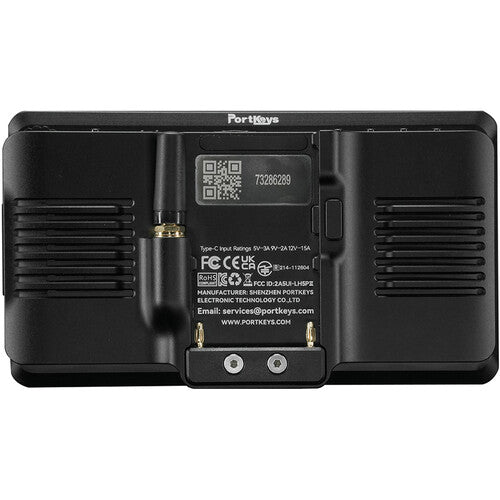

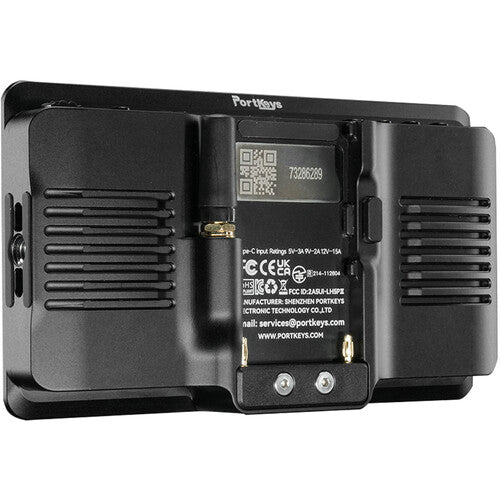

Sony L-Series Battery Plate
Power the monitor using the built-in L-Series battery plate, via the included D-Tap power cable, or with a separately available dummy battery using the DC output.
Wired Control Camera Compatibility
- Sony FS5, FS7, FX6, FX9, A9 II, A7 III, a7R III, a7S III, a7R IV, a7M IV, a6000, a6300, a6400, a6500, RX100, RX02, FX3, FX30, A1, A7C II, ZV-E10, ZV-1
- Panasonic S1, S5, G9, GH6, S1H, S1R, GH5 II (AF/MF), S5, S5 M2, S5 M2X, BGH1, BS1H
- Canon EOS C70, C700PL, C700, GSPL, C300 Mark II, C300 Mark II PL, C300 Mark III, C200, C200 B, C100, C100 Mark II, EOS R, EOS R5 (Touch Focus), EOS R6 (Touch Focus), EOS R6 Mark II (Touch Focus), 1DX, 1DX Mark II, 5DS, 5DS R, 5D Mark IV, 5D Mark III, 5D Mark II, 6D, 6D Mark II, 80D
- Tilta Nucleus-N/Nucleus-M
Wireless Control Camera Compatibility
- Canon EOS R5/R6/R6 Mark II/R7/R8
- Nikon Z8/Z9
- ZCAM E2
- Sony a1, a9 II, a7S III, a7CII, FX3, FX30, ZV-1, ZV-E1, ZV-E10, RX10, a7 IV, A7R IV, A7R V, RX0, A7 III
- Blackmagic Design URSA Mini 4K, Mini 4.6K, Mini Pro 4.6K G2, Cinema Camera 2.7K,
- Cinema Camera 4K, Micro Studio Camera 4K
- Panasonic BGH1, BS1H
