K 5600 Lighting Joker-Bug 1600W Beamer Kit (90-265VAC)

K 5600 Lighting Joker-Bug 1600W Beamer Kit (90-265VAC)

SKU | K1600JB

No Longer Available

This product is no longer available and is discontinued

Expected Delivery -

Order Now:

Financing:

$1,207.28 / month

Genuine Expert Advice |

Send us an

about this product or anything else

Highlights

  • 1,600W Head, 5600K Lamp
  • Beamer Reflector, 4 Lenses
  • Lens Bag, 3 Scrims, Barndoors
  • Clear and Frosted UV Beakers
  • 25' Extension Cable
  • 9.0' Head Cable
  • Electronic Ballast 90-265V, 50/60Hz
  • Ballast is Fan Cooled
  • 50% Dimmable
  • Hard Carrying/Shipping Case

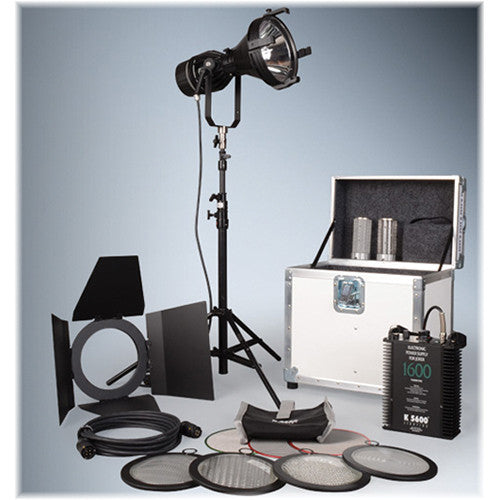

Description

The Joker-Bug 1600 is a powerful continuation of the Joker generation of daylight HMI fixtures. At 1,600W, the Joker-Bug 1600 is comparable to over 6,000W of quartz output and produces twice as much, or one full stop more light, as the Joker 800. This Joker-Bug Beamer 1600W Kit (90-265VAC) by K5600 comes with a Beamer-equipped Joker-Bug head. The Beamer is high-temperature black 8.0" diameter, specular (90% reflectance) parabolic reflector. Machined from electrolytically coated, aluminum billet, it accepts 9.0" accessories as well optional heat-resistant softboxes equipped with aluminum speedrings.

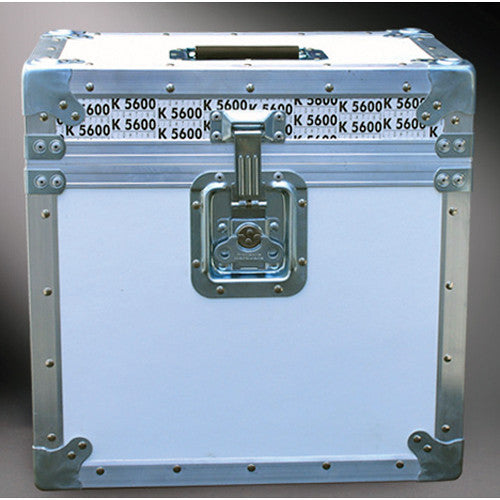

The kit includes a square wave, flicker-free, 90-265VAC 50/60Hz, fan-cooled, 50% dimmable ballast with an Output Frequency Selector. A 25' head cable, 4 lenses, 3 scrims and a set of barndoors are also provided. You can choose between the included clear or diffused frosted UV Beaker lamp protectors, depending on the light quality that you require. It all fits in the kit's hard, aluminum-reinforced carrying/shipping case.

Joker-Bug 1600 - Not Just Another HMI
At 1,600W, the Joker 1600 is comparable to over 6,000W of quartz fixture output and produces twice as much, or one full stop more light, as the Joker 800.

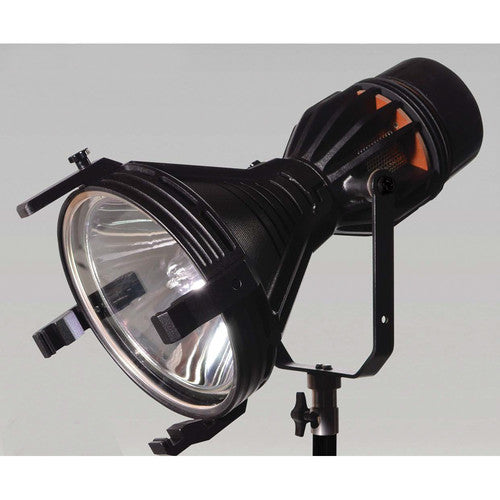

The Joker-Bug 1600 Beamer Fixture
The Joker-Bug fixture in this kit includes an 8.0" specular reflector and a set of 4 traditional PAR 64-type lenses - Medium, Wide, Super-Wide and a Frosted Fresnel. These lenses provide varying light patterns from 5 to 45 degrees and maximum output due to the reflector finish.
The Electronic Power Supply
The power supply is not only quiet, but smaller than comparable ballasts (even those of less wattage). It's capable of running on a 15A/120V circuit, is dimmable, and has selectable frequency options for extreme high speed shooting.
Light Fixture
Rating 1,600W HMI
Socket G22, highly insulated for hot retsrike
Lamp HMI 1,600W CSR/SE single-ended
Lamp life: 700 hours
Color Temperature Approximately 5,600K
Reflector 90% Reflectance, 8.0" (20.3 cm), accepts 9.0" (22.8 cm) accessories
Lens Beamer reflector
Accepts included Fresnel Frosted Lens, Super Wide Flood, Wide Flood, Medium Flood
Cable 9.0' (2.74 m)
Mount 5/8" (16 mm) Baby pin and 1 1/8" (28 mm) Junior pin
Construction Beamer: aluminum billet with replaceable ears
Yoke: steel; black high temperature finish
Dimensions 18.5 x 11 x 5.5" (47 x 28 x 14 cm) (yoke folded back for packing, measured from Beamer)
Width and depth of Joker-Bug: 5.5" (14 cm)
Weight 15 lb (6.9 kg)
HMI Ballast
Rating 1,600W Square wave, flicker-free
Cable Includes 25' shielded (7.62 m) cable
Power 90-265VAC, 50/60Hz
Output frequency selector
Fan Cooled Yes
Dimming 50-0%
Connectors Veam quarter-turn quick locking
Dimensions 10.5 x 8.5 x 3.5" (26.6 x 21.6 x 9.0 cm)
Weight 13 lb (6.0 kg)
Kit Dimensions 20 x 21 x 13" (51 x 53 x 33 cm)
Kit Weight 60 lb (27.21 kg)

Packaging Info
Package Weight 68.2 lb
Box Dimensions (LxWxH) 24.0 x 23.5 x 15.0"
