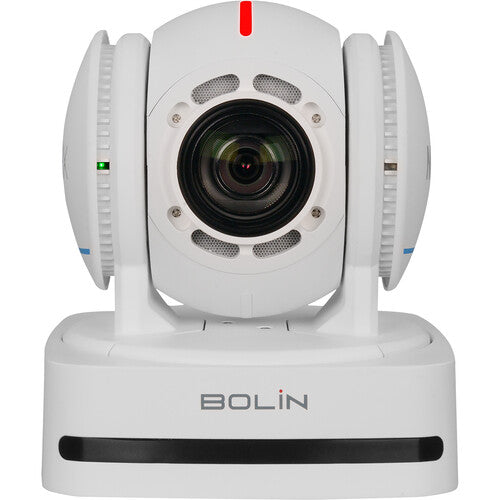

The Bolin Technology N2-220X NDI|HX3 PTZ Camera (White) allows you to capture professional HD video for video conferencing, education, houses of worship, or other video applications. This remotely controllable PTZ camera features a gimbal-style housing and allows you to record up to 1080p60 resolution video, with output options including NDI|HX3, HDMI, 3G-SDI, USB-C, or IP dual streaming via its Gigabit RJ45 Ethernet interface. Notable features include a 20x optical zoom, 16x digital zoom, a 55.8° field of view, ±170° panning range, 90° to -30° tilting range, auto or manual focus, wide dynamic range, and serial/IP control. It also includes a 3.5mm mic/line audio input and a rugged magnesium alloy housing for durability.
The low-noise 1/2.8" 2.13MP CMOS sensor ensures a high signal-to-noise ratio, while advanced 2D/3D noise-reduction technology further reduces image noise, so an even sharper image is delivered in low light. The RJ45 Ethernet port allows you to control and configure the camera via IP, and it also allows simultaneous dual streaming via IP for a live internet stream. You can also output the video via USB with UVC support, making it easy to interface with a computer to send video and audio to a streaming or recording application. There is also an audio line input on the back to input stereo audio into your streams and video output.
The pan/tilt/zoom mechanism uses quiet, smooth movements, controllable using the included IR remote controller, ONVIF and VISCA-over-IP control, or the RS-232 input/outputs that support VISCA, Pelco-D, and Pelco-P protocols for use with a separately available controller. You can store up to 255 preset positions using an optional serial controller, or store six presets when using the included IR remote. You can power the camera using a networked PoE (Power-over-Ethernet) switch or the included power adapter. The camera also includes an RS-232 control cable.
High-Quality Full HD Imaging
The Bolin NDI|HX3 N2-220X PTZ camera is equipped with a 1/2.8" CMOS sensor to provide high-quality images in 1080p60 resolutions with 20x optical zoom. The camera comes in a black color.
NDI Streaming
The camera supports NDI|HX3 and are fully compatible with NDI-enabled hardware and software. It also supports RTSP and RTMP for online video and live streaming.
SRT Ready
The N2 can deliver high-quality, secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best-quality live video over unstable networks.
Video Output
The N2 NDI|HX3 PTZ cameras deliver NDI IP streaming video to network and are fully compatible with NDI-enabled hardware and software, with local 3G-SDI, HDMI, video and USB streaming to computer software for conventional video production and cloud based video conferencing applications.
Video Settings
Image parameter adjustments include exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, E-Flip/mirror, and more, with configurable video settings.
Smart Focus and Exposure
The camera is built with Bolin's latest AI-powered face analytical engine, which enables precise smart focus and smart exposure to bring a greater level of user experience and effective image quality improvement in a complex user environment.
Audio
All 3G-SDI, HDMI, USB, and IP video streaming signals have high-quality audio streaming embedded with support for mic-in / line-in audio input via the USB-A port with an adapter.
PTZ Movement
The N2-220X features extremely quiet and smooth pan/tilt operation and enhanced adaptive, variable, and super-slow speed control for accurate and effective operation. With the Picture Profile Preset, image parameter settings are restored with presets and quick access.
Remote Control and Setup
The camera supports serial RS-232/RS-422 control and VISCA-over-IP control over a network. Remotely control pan, tilt, and zoom movements with full access to the camera's image parameter settings via a keyboard controller or IR controller.
Ease of Installation and Use
Use optional Bolin mounting accessories and connect one network cable with a PoE+ enabled Ethernet network/PoE device, or use the included RJ45 port serial cable adapter to make installation and control easy. Connect one network cable from the camera to any Gigabit Ethernet network/PoE device to access an existing IP network, and connect an HDMI/SDI cable to baseband video workflow. Standard mounting and ceiling mounting are achieved with the E-Flip function.
Always up to Date
Free and easy firmware updates are available via the IP interface to keep camera features and performance up to date, even for customized function upgrades.
