OVERVIEW
- Side Plate for Canon C70
- Top Plate for Canon C70
- NATO Top Handle
- LeftField 15mm LWS Baseplate Core
- Dovetail Plate
- HDMI Clamp for Canon C70
- DJI/Zhiyun Riser for Canon C70
- DJI Dovetail for Canon C70
- 2 x 9" Long 15mm Titanium Rods

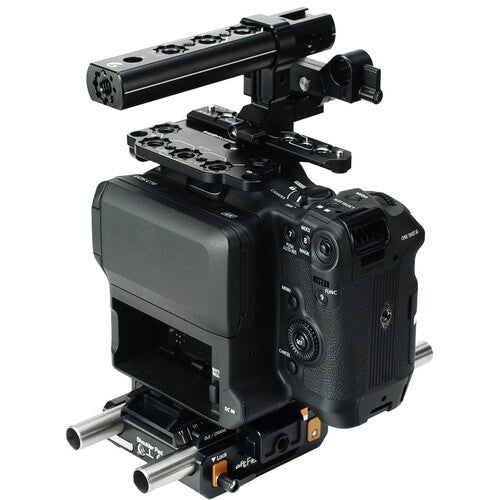

Protect your Canon C70 from the rigors of the production day, improve your accessory mounting and rigging options, and add compatibility with DJI and Zhiyun gimbals with the Bright Tangerine Canon C70 Expert Kit, consisting of a top plate, side plate, LeftField baseplate, dovetail plate, NATO top handle, pair of 15mm rods, HDMI cable clamp, riser, and baseplate for use on select gimbals. The components are made from precision CNC-machined and anodized aluminum, creating a lightweight rigid cage for your camera with multiple accessory mounting points and 15mm LWS rod clamps that position your camera to accept 15mm rod-mounted accessories. A sensor plane marking is useful for accurate focus distance measurements when using cine-style lenses.
The Expert Kit features a NATO rail with spring-loaded safety stops on each end, as well as a top handle that attaches to the NATO rail. Additional mounting points include 1/4"-20 and 3/8"-16 with ARRI-compatible anti-twist divots, as well as QD (quick-detach) mounting points. Stainless steel heli-coil inserts in the threaded mounting points prevent stripping and loosening of the threads over time. The included baseplate features an "Open-Up" design to enable you to easily lift the camera from the dovetail. The included riser and DJI baseplate allow you to mount your C70 on a variety of gimbals, further expanding the usability of your C70 camera. Rounding out the kit is a pair of 9" 15mm rods that are made from titanium, making them lighter and more rigid than carbon fiber, aluminum, or steel rods.
SPECS
Bright Tangerine Top Plate For Canon C70 Specs
| Material of Construction | Aluminum, Stainless Steel |
| Mounting | Multiple 1/4"-20 Threads
Multiple 3/8"-16 ARRI-Style Accessory Mounts
1 x Integrated NATO Rail with Spring-Loaded Safety Stops
2 x Strap Holes |
| Dimensions | 4.7 x 2.9 x 0.6" / 12 x 7.4 x 1.6 cm |
| Weight | 3.5 oz / 100 g |
Packaging Info
| Package Weight | 0.225 lb |
| Box Dimensions (LxWxH) | 5.15 x 2.95 x 0.8" |
Bright Tangerine Side Plate For Canon C70 Specs
General
| Material of Construction | Aluminum, Stainless Steel |
| Mounting Orientation | Left Side, Requires Top Plate or Riser |
| Accessory Mounting Threads | 2 x 3/8"-16
2 x 1/4"-20 |
| Mounting Options | 1 x Integrated NATO Rail
1 x Shoe Mount |
| Dimensions | 5.4 x 2.3 x 0.5" / 13.6 x 5.9 x 1.3 cm |
| Weight | 1.9 oz / 55 g |
Packaging Info
| Package Weight | 0.135 lb |
| Box Dimensions (LxWxH) | 6.7 x 2.9 x 0.65" |
Bright Tangerine Left Field Universal 15mm LWS Baseplate Core Mk II Specs
| Dimensions | 1.2 x 3.9 x 4.9" / 3 x 10 x 12.4 cm |
| Weight | 0.55 lb / 250 g |
Packaging Info
| Package Weight | 0.79 lb |
| Box Dimensions (LxWxH) | 6.95 x 5.4 x 1.7" |
Bright Tangerine Left Field ARRI-Style Dovetail Plate Specs
| Mount Type | Multiple:
1/4"-20
3/8"-16:
ARRI accessory mounts |
| Dimensions | 3.9 x 2.6 x 0.3" / 10 x 6.7 x 0.8 cm |
| Weight | 2.6 oz / 75 g |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 7.2 x 6.85 x 0.25" |
Bright Tangerine HDMI Cable Clamp For Canon C70 Side Plate Specs
General
| Material of Construction | Aluminum |
| Mounting Screw | 1 x Captive Screw |
| Cable Support | 2 x Captive Screw |
| Cable Compatibility | HDMI
Width up to 0.4" / 10 mm |
| Force | Pull Force up to 66 lb / 30 kg |
| Dimensions | 2.2 x 1.2 x 0.4" / 5.6 x 3 x 0.9 cm |
| Weight | 5.6 oz / 160 g |
Packaging Info
| Package Weight | 0.045 lb |
| Box Dimensions (LxWxH) | 2.9 x 2.1 x 0.45" |
Bright Tangerine NATO Top Handle Specs
| Grip Type | Topside Handle with Cheeseplate-Style Handle |
| Rotation | No |
| Built-In Controls | None |
Mounting
| Attachment Method | Attaches via 1 x Built-In Rail Clamp |
| Compatibility | Attaches :
|
| Accessory Mounting | Multiple x Anti-Twist 1/4"-20 Thread
Multiple x Anti-Twist 3/8"-16 Thread |
| Shoe Mounting | 1 x Built-In Cold Shoe Slot |
| Rosettes | None |
| Rail Mounting | None |
General
| Construction | Aluminum |
| Dimensions | 5.9 x 2.6 x 1.3" / 15 x 6.7 x 3.4 cm |
| Weight | 8.1 oz / 231 g |
Packaging Info
| Package Weight | 0.525 lb |
| Box Dimensions (LxWxH) | 8.15 x 5.3 x 1.75" |
Bright Tangerine 15mm Baseplate Riser For Canon C70 & DJI/Zhiyun Gimbals Specs
General
| Material of Construction | Aluminum |
| Mounting | 6 x Captive Screws
Quick Release Dovetail Mechanism |
| Dimensions | 4.5 x 3.8 x 0.8" / 11.5 x 9.6 x 2.1 cm |
| Weight | 2.1 oz / 60 g |
Packaging Info
| Package Weight | 0.28 lb |
| Box Dimensions (LxWxH) | 6.1 x 3.9 x 1.15" |
Bright Tangerine DJI Dovetail Plate For Canon C70 Specs
| Material of Construction | Hard-Anodized Aluminum, Rubber |
| Accessory Mounting Threads | Front: 3 x M4 |
| Camera Mounting Screws | 1 x 3/8"-16
1 x 1/4"-20 |
| Length | 4.5" / 115 mm |
| Weight | 1.7 oz / 50 g |
Packaging Info
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 5.15 x 3.65 x 0.75" |
Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods (9", Pair) Specs
| Diameter | 15 mm |
| Length | 9" / 22.86 cm |
| Material | Titanium |
| Thread Type | None |
| Number of Rods | 2 |
| Weight | 1.59 oz / 45 g |
Packaging Info
| Package Weight | 0.23 lb |
| Box Dimensions (LxWxH) | 11.35 x 3.55 x 1.1" |
