No Longer Available
This product is no longer available and is discontinued
Expected Delivery -
Order Now:
$4,504.86 / month

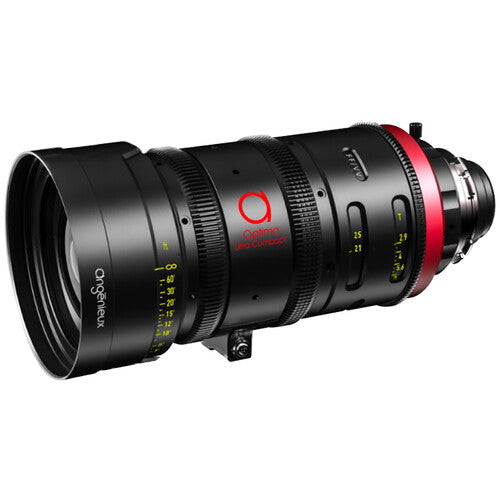

The Angenieux Optimo Ultra Compact 21-56mm Zoom Lens provides optimal imaging for full-frame, VV sensor cameras. This successor to the original Optimo lightweight zooms offers the same classic Angenieux look with balanced contrast and resolution found with its 37-102mm Optimo Ultra Compact companion lens, the Optimo Ultra 12x zoom, and the Optimo primes.
This PL-mount, 2.7x zoom lens features a constant T2.9 maximum aperture, low distortion, and a minimum focus of 2' that enables extreme closeups. The lens has a Cooke /i data connector, user-switchable focus marks in feet/meters, and the ability to withstand temperatures ranging from -4 to 113°F. The Ultra Compact 21-56mm produces minimal breathing when racking focus and has a wide barrel rotation of 310° for precise focus pulls.
Redesigned form provides full-frame, VistaVision coverage
Ideal, lightweight companion to the Optimo Ultra Compact 37-102mm zoom, the Optimo Ultra 12x zoom, and the full-frame series of Optimo Primes
This compact zoom measures just 9.2" long and weighs a relatively lightweight 5.7 lb
Currently, the Ultra Compact Zooms are available only with a PL-mount, full-frame, VV design but Interchangeable Rear Optics (IRO) will be available in the future with S35 and U35 options
| Focal Length | 21 to 56mm |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full Frame |
| Image Circle | 46.3 mm |
| Maximum Aperture | T2.9 |
| Minimum Focus Distance | From Image Plane: 23.6" / 60 cm |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
| Front Diameter | 114 mm |
| Filter Thread | None |
| Focus Scales | Imperial |
| Focus Rotation | 310° |
| Zoom Ratio | 2.7x |
| Electronic Communication | Yes |
| Image Stabilization | No |
| Connectivity | 1 x 4-Pin LEMO (Cooke /i Technology Lens Data) Data |
| Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread |
| Length | 9.3" / 235 mm |
| Weight | 5.7 lb / 2.6 kg |
