Angenieux EZ Lens Series Basic Kit
Angenieux

Angenieux EZ Lens Series Basic Kit

SKU | EZ-BASIC KIT

No Longer Available

This product is no longer available and is discontinued

Expected Delivery -

Order Now:

Financing:

$2,085.41 / month

Genuine Expert Advice |

Send us an

about this product or anything else

*NEW ITEM* COMING SOON

EXPECTED: September 27, 2017

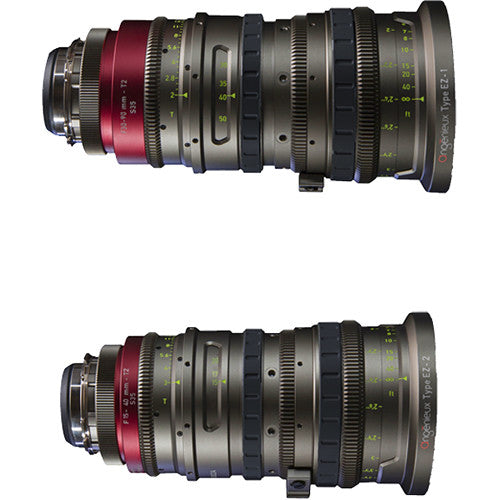

  • EZ-1 30-90mm T2 Super35 Lens
  • EZ-2 15-40mm T2 Super35 Lens
  • Hard Travel Case

Angenieux's EZ Lens Series is an innovative concept that is modular to fit the needs of filmmakers. This Basic Kit features both EZ-1 and EZ-2 lenses and a hard travel case for protection during storage and transport. Both lenses come with a PL mount installed, though separately available mounts of other types can be swapped for use on different cameras. Additionally, the rear lens element groups of the EZ-1 and EZ-2 lenses can be exchanged with separately available full-frame compatible lens groups, further ensuring compatibility with cameras that have larger sensors. See below for more information on the items included in this kit.

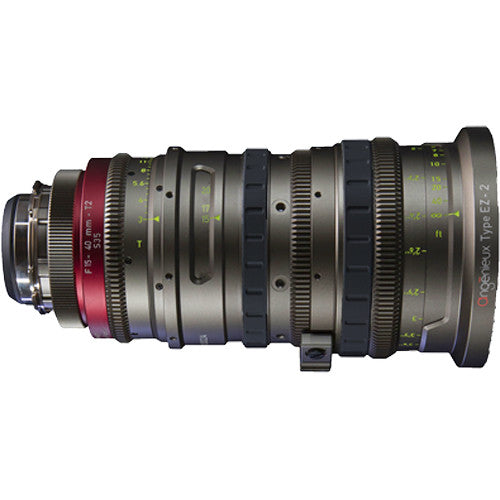

EZ-2 15-40mm S35 Cinema Lens with PL Mount
  • Angenieux's EZ-2 15-40mm S35 Cinema Lens with PL Mount is a fast zoom for 3-perf Super 35mm sized sensors that has been designed from the ground up to utilize interchangeable rear optical assemblies. This allows you to use the same lens to cover Super 35 or Full-Frame/VistaVision-sized sensors by swapping out the rear optical assembly. In addition, the rear assemblies allow you to swap the lens mount from PL to Sony E or Canon EF.
  • The version of the lens ships with a PL mount and the Super 35 rear optical assembly. Set up as such it features a T2.0 aperture and focuses down to 2' in front of the image plane, while weighing in at only 4.7 pounds. The 114mm front diameter of the lens is a common diameter compatible with cinema-style matte boxes. The lens features independent focus, iris, and zoom control rings with cinema standard gear teeth. A removable support foot can be repositioned for when you need to rotate your lens off of a standard mounting orientation.
Interchangeable Rear Optical Assembly
The EZ-2 15-40mm is designed with swappable rear optical elements so you can easily convert the lens from covering 3-perf Super 35 to full-frame/VistaVision. This design has many advantages over adding additional optical elements such as 2x extenders, as swapping the rear assembly allows the lens to maintain the same physical size and minimum operating distance, while losing only slightly more than a stop when going from Super 35 to full-frame coverage. Additionally, as the optics are designed to be part of the lens, and not just additional elements that blow up the image resolved by the lens, they match the optical quality of the lens and your image does not suffer from having to go through additional glass/air surfaces, which can degrade your image.
Interchangeable Lens Mounts
This lens ships with a PL mount; however, that mount can be swapped with available (not included) E or EF lens mounts.
Losing only 1/10 of a stop within the lens, the EZ-2 is extremely efficient. The fast T2.0 maximum aperture in Super 35mm matches the maximum aperture of many standard prime lenses for Super 35mm. This allows you to light to a lower illumination level than would normally be required for many zooms, making for more consistent images as you may not have to relight the scene as is often the case when moving from primes to slower zoom lenses.
Manual Lens Control Rings
Featuring independent manual control rings for focus, iris, and zoom. Each control ring incorporates industry standard 0.8 lens gear teeth.
114mm Front Diameter
The EZ-2 shares the same 114mm front common to the Angenieux OPTIMO lens series, allowing you to easily share matte boxes between the EZ-2 and the OPTIMO lenses.
Temperature Stability
The EZ series of lenses are designed and built to compensate for temperature drifts, which helps reduce the need to recollimate the lens.

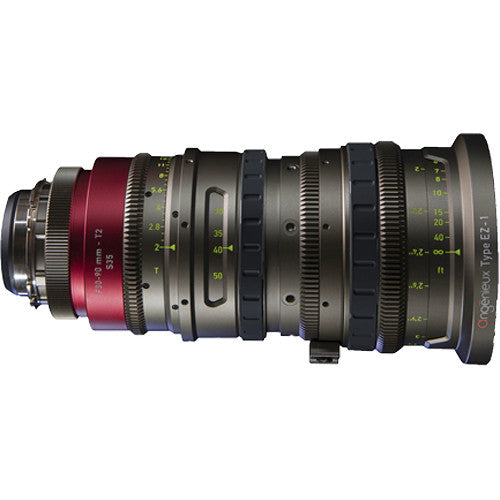

EZ-1 30-90mm S35 Cinema Lens with PL Mount
  • Angenieux's EZ-1 30-90mm S35 Cinema Lens with PL Mount is a fast zoom for 3-perf Super 35mm sized sensors that has been designed from the ground up to utilize interchangeable rear optical assemblies. This allows you to use the same lens to cover Super 35 or Full-Frame/VistaVision-sized sensors by swapping out the rear optical assembly. In addition, the rear assemblies allow you to swap the lens mount from PL to Sony E or Canon EF.
  • The version of the lens ships with a PL mount and the Super 35 rear optical assembly. Set up as such it features a T2.0 aperture and focuses down to 2' in front of the image plane, while weighing in at only 4.7 pounds. The 114mm front diameter of the lens is a common diameter compatible with cinema-style matte boxes. The lens features independent focus, iris, and zoom control rings with cinema standard gear teeth. A removable support foot can be repositioned for when you need to rotate your lens off of a standard mounting orientation.
Interchangeable Rear Optical Assembly
The EZ-1 30-90mm is designed with swappable rear optical elements so you can easily convert the lens from covering 3-perf Super 35 to full-frame/VistaVision. This design has many advantages over adding additional optical elements such as 2x extenders, as swapping the rear assembly allows the lens to maintain the same physical size and minimum operating distance, while losing only slightly more than a stop when going from Super 35 to full-frame coverage. Additionally, as the optics are designed to be part of the lens, and not just additional elements that blow up the image resolved by the lens, they match the optical quality of the lens and your image does not suffer from having to go through additional glass/air surfaces, which can degrade your image.
Interchangeable Lens Mounts
This lens ships with a PL mount; however, that mount can be swapped with available (not included) E or EF lens mounts.
Losing only 1/10 of a stop within the lens, the EZ-2 is extremely efficient. The fast T2.0 maximum aperture in Super 35mm matches the maximum aperture of many standard prime lenses for Super 35mm. This allows you to light to a lower illumination level than would normally be required for many zooms, making for more consistent images as you may not have to relight the scene as is often the case when moving from primes to slower zoom lenses.
Manual Lens Control Rings
Featuring independent manual control rings for focus, iris, and zoom. Each control ring incorporates industry standard 0.8 lens gear teeth.
114mm Front Diameter
The EZ-1 shares the same 114mm front common to the Angenieux OPTIMO lens series, allowing you to easily share matte boxes between the EZ-1 and the OPTIMO lenses.
Temperature Stability
The EZ series of lenses are designed and built to compensate for temperature drifts, which helps reduce the need to recollimate the lens.
  • EZ-2 15-40mm S35 Cinema Lens with PL Mount
    Focal Length 15 - 40mm
    Lens Mount ARRI PL
    Format Super35/APS-C
    Image Circle 30.0 mm
    Maximum T-Stop T2.0
    Maximum F-Stop f/1.9
    Minimum T-Stop Not specified by manufacturer
    Diagonal Angle of View Super35/APS-C: 89.5 - 39.0°
    Minimum Focus Distance from Image Plane 2' / 0.6 m
    Elements/Groups Not specified by manufacturer
    Iris Blades Not specified by manufacturer
    Front Diameter 114 mm
    Filter Thread Not specified by manufacturer
    Focus Scales Not specified by manufacturer
    Zoom Ratio 2.7x
    Electronic Communication Not specified by manufacturer
    Tripod Mounting Thread Not specified by manufacturer
    Dimensions (W x H) Not specified by manufacturer
    Length 8.3" / 210 mm
    Weight 4.7 lb / 2.1 kg
  • EZ-1 30-90mm S35 Cinema Lens with PL Mount
    Focal Length 30 - 90mm
    Lens Mount ARRI PL
    Format Super35/APS-C
    Image Circle 30.0 mm
    Maximum T-Stop T2.0
    Maximum F-Stop f/1.9
    Minimum T-Stop Not specified by manufacturer
    Diagonal Angle of View Super35/APS-C: 50.31 - 17.6°
    Minimum Focus Distance from Image Plane 2' / 0.6 m
    Elements/Groups Not specified by manufacturer
    Iris Blades Not specified by manufacturer
    Front Diameter 114 mm
    Filter Thread Not specified by manufacturer
    Focus Scales Not specified by manufacturer
    Zoom Ratio 3x
    Electronic Communication Not specified by manufacturer
    Tripod Mounting Thread Not specified by manufacturer
    Dimensions (W x H) Not specified by manufacturer
    Length 8.9" / 226 mm
    Weight 4.7 lb / 2.2 kg
    Packaging Info
    Box Dimensions (LxWxH) 25.5 x 14.2 x 13.8"
